Find out all GTEC tools available for a professional UPS monitoring

GTEC UPSs offer complete protection to any connected device, in any kind of location and environment. Both hardware and software tools can be used to monitor the UPS operation.

These accessories not only provide easy access to key UPS status information, but they also allow users to proceed with a series of direct actions, in case of need, even remotely to ensure the integrity of equipment and data.

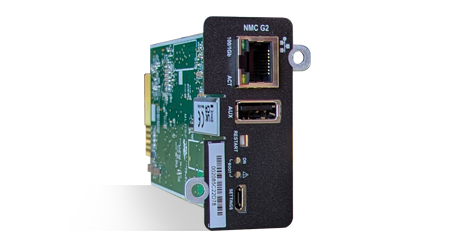

SNMP – NMC Card

SNMP – NMC card is a UPS monitoring accessory that allows to link UPS via Ethernet networks, providing access information and configuration for the UPS.

In particular the card communicates with UPS and respond to Network Management System using SNMP Protocol (Simple Network Management Protocol).

All the information can be easily read through a dedicated Web browser page and, in addition to the card, it comes also SPS (System Protect Software): an application program for multi-servers (OS) shutdown purpose.

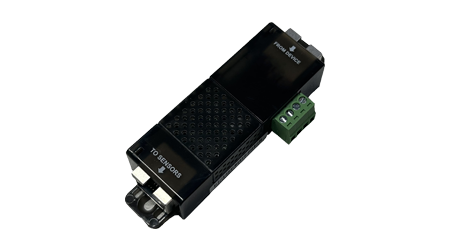

EMD-HT-C Card

Another UPS hardware tool is the Environmental Monitoring Device (EMD) that allows you to collect environment temperature and humidity readings, and to remotely monitor all data through a standard Web browser.

The function of this accessory is to monitor and to collect the environmental conditions and activities in the areas where the UPS is installed.

The card measures temperatures from 0°C to 70°C with an accuracy of ±2°C, and relative humidity from 10% to 90% with an accuracy of ±5%.

AS400N Card

AS400N is another communication card that provides voltage-free dry-contact signals for programmable controller and management system.

The card is equipped with 5 output relay signals and 1 input signal for remote on/off and UPS shutdown.

AS400N also allows to completely setup normal-open or normal-close signal as well as the delay time.

CMC Card

Another tool for UPS remote monitoring and control is the CMC card:

• Converts the UPS RS232 signal into a new RS232 signal with specified address
• Converts UPS RS232 signal into RS485 signal (4-wire, full-duplex)
• Provides a pair of RJ45 interface

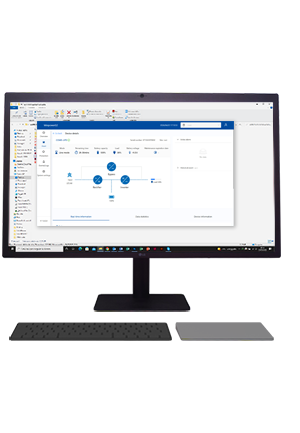

WINPOWER Software

WINPOWER is the software specially designed for UPS professional monitoring, that can be free downloaded by any GTEC customer.

The software supports either standalone computers or network connected computers (including LAN & Internet), in this way each user can easily monitor the UPS status in real time directly by PC.

WINPOWER also allows to scheduled system shutdown, restart and UPS test, as well as it supports shutdown for different OS and warning notification via SMS and e-mail.
